AccuTrak 3300 Switchboxes

Actuation Westlock

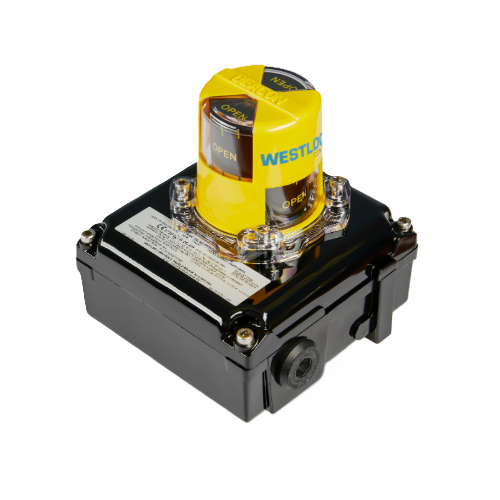

Westlock AccuTrak 3300 Series: Precision Valve Control Solutions

Upgrade your valve control systems with the Westlock AccuTrak 3300 series, designed for exceptional precision and durability. This advanced series provides reliable position feedback and robust performance, making it ideal for various industrial applications.

The AccuTrak 3300 series features an intrinsically safe design, certified to ATEX/IEC standards, ensuring safe operation in hazardous environments. Equipped with Magnum switches that have rhodium contacts for low power I/O, this series guarantees longer contact life. The durable Beacon™ offers 360° visual indication in multiple styles and colors, enhancing visibility and control.

Touch Set Cams in the AccuTrak 3300 series are hand adjustable, spring-loaded, and self-locking, allowing for quick and easy calibration of position switches and sensors. The series is designed for ease of use, with pre-wired and numbered terminal strips providing generous working space. Robust enclosures made from engineered resin and aluminum offer exceptional resistance to chemicals, UV, and impact.

Installation is quick and straightforward, thanks to standardized mounting patterns that easily adapt to common bracketry. The AccuTrak 3300 series is built to withstand harsh conditions, ensuring long-term reliability. It is versatile and suitable for a wide range of industrial environments, from weatherproof to explosion-proof areas.

Specification
Advantages
Video
Documents
Contact

Specification

Certifications: ATEX/IEC certified for intrinsically safe applications

Switches: Magnum SPDT (hermetically sealed proximity type) switches with rhodium contacts for longer contact life

Visual Indicator: Strong, durable Beacon™ offering 360° visual indication, available in various styles and colours
Enclosure: Engineered resin enclosure that is lightweight, robust, and resistant to chemicals, UV, and impact

Aluminum enclosures with ultra-low copper content (0.2% maximum) are also available for corrosive environments
Ingress Protection: IP66/67 for enclosures, with switches rated at IP68
Temperature Range: Suitable for broad operating temperatures
Mounting: Standardised mounting pattern for easy adaptation to common bracketry

Flexachem offers other variations. Please contact us with your specifications and we will chose the right switchbox for you.

Advantages

Durability: The lightweight engineered resin enclosure is highly resistant to chemicals, UV, and impacts. For corrosive environments, aluminum enclosures with low copper content are available.
Clear Visual Feedback: The durable Beacon™ provides 360° visual indication, making it easy for operators to check valve positions at a glance.
Easy Calibration: The TouchSet cams are hand-adjustable, spring-loaded, and self-locking, allowing for quick and precise calibration of position switches and sensors without extra tools.
Versatile Sensor Options: It supports various position sensors, including mechanical, proximity, and solid-state types, ensuring reliable performance in different applications.
Simple Installation: Standardized mounting patterns and pre-wired, numbered terminal strips make installation straightforward, saving time and reducing errors.
High Protection: The enclosures are rated IP66/67, and the switches are rated IP68, offering excellent protection against dust and wate
